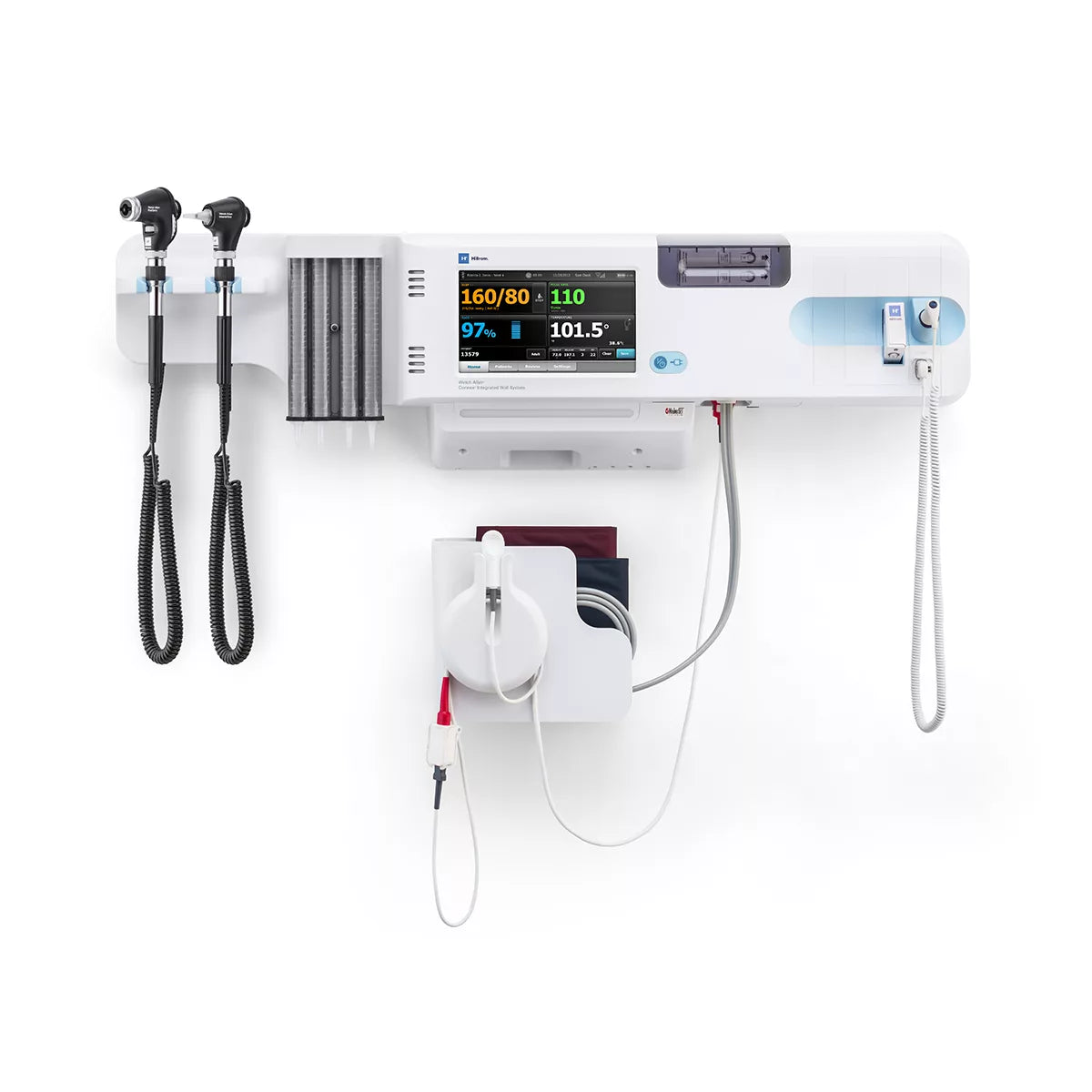

• Connex Integrated Wall System 84MTVX3-US

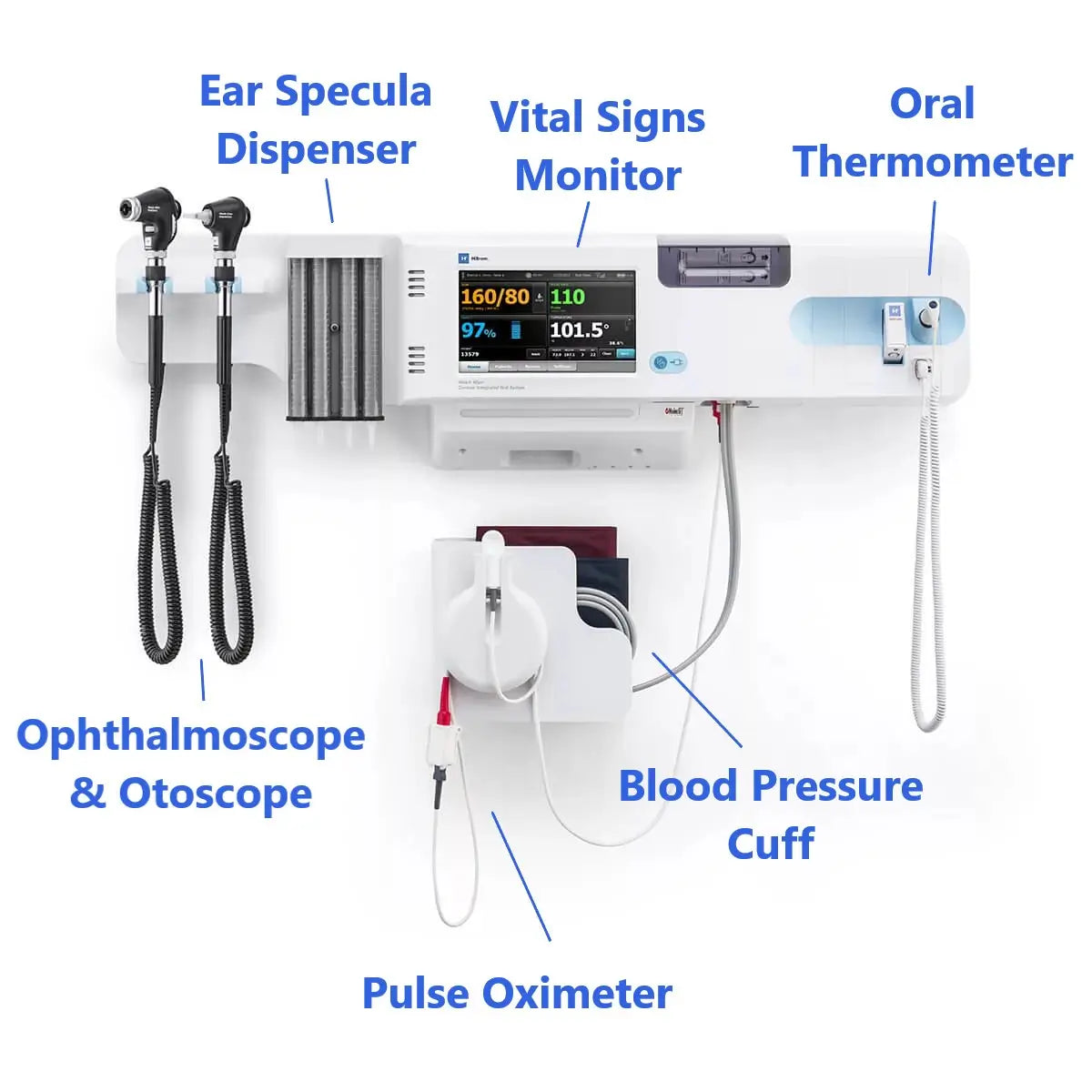

  • Connex Integrated Wall System Breakdown

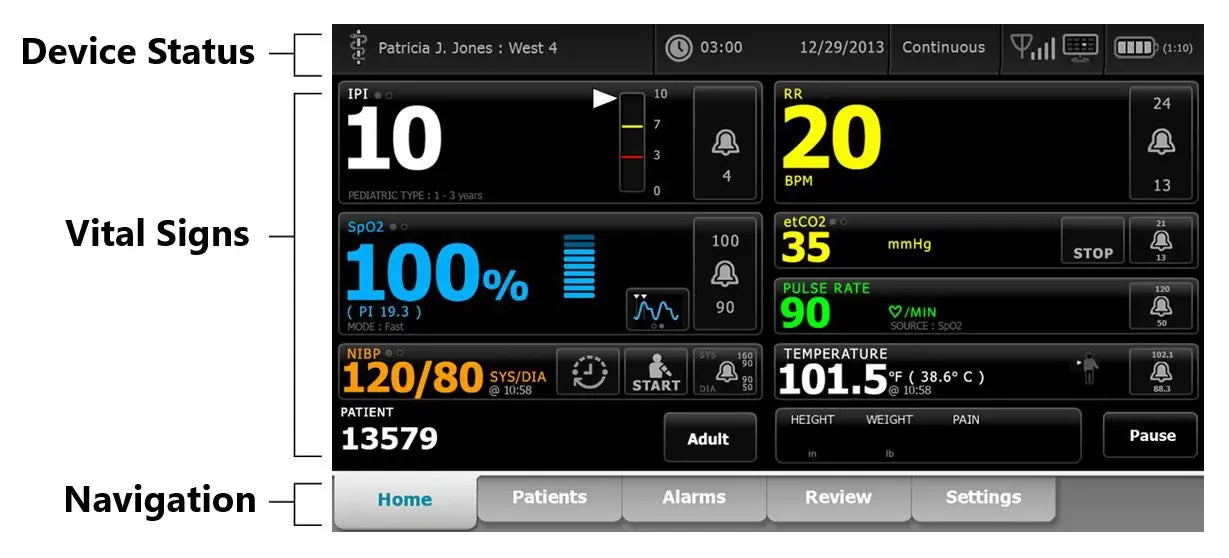

  • Connex Integrated Wall System Color LCD Touchscreen

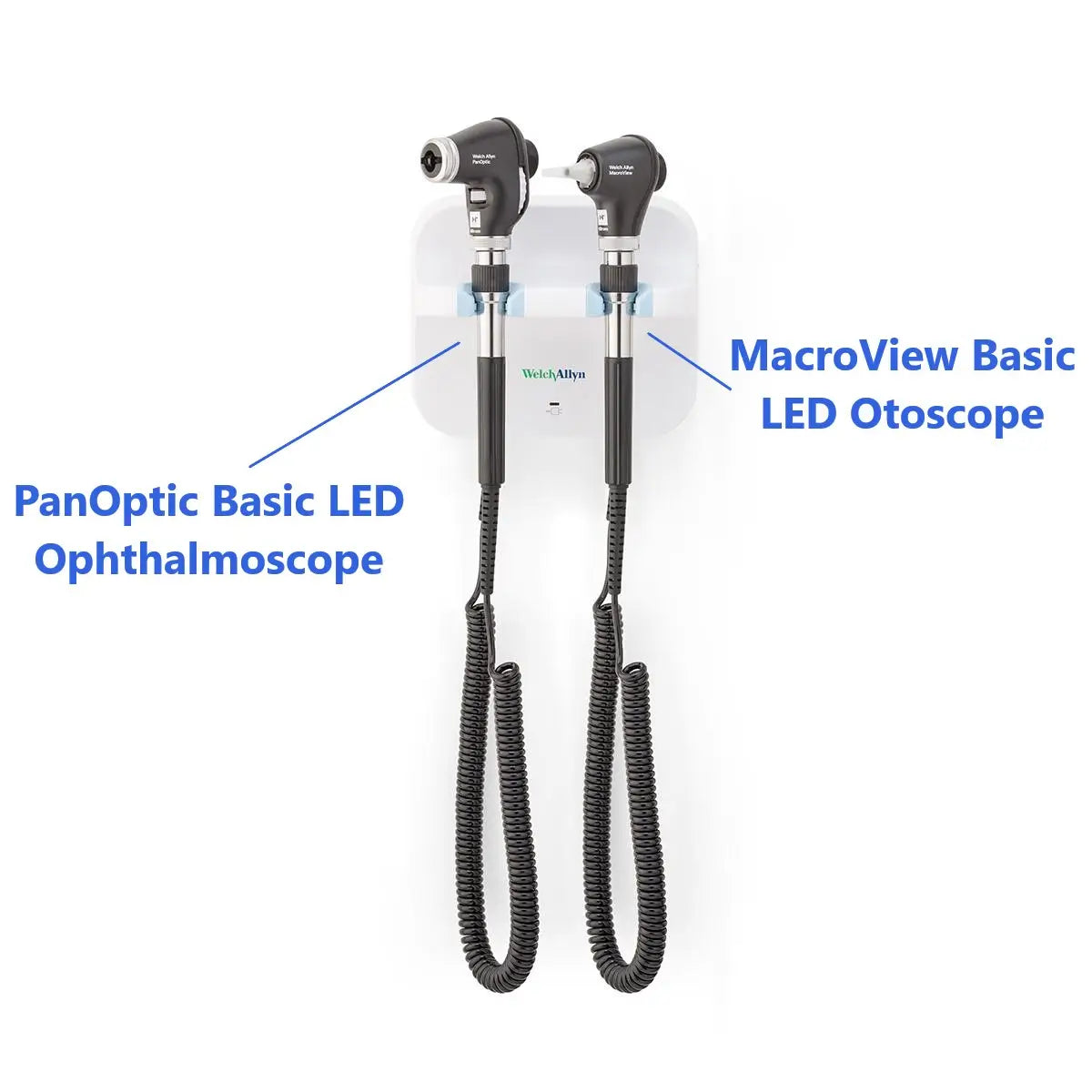

  • PanOptic Basic Ophthalmoscope and MacroView Basic Otoscope

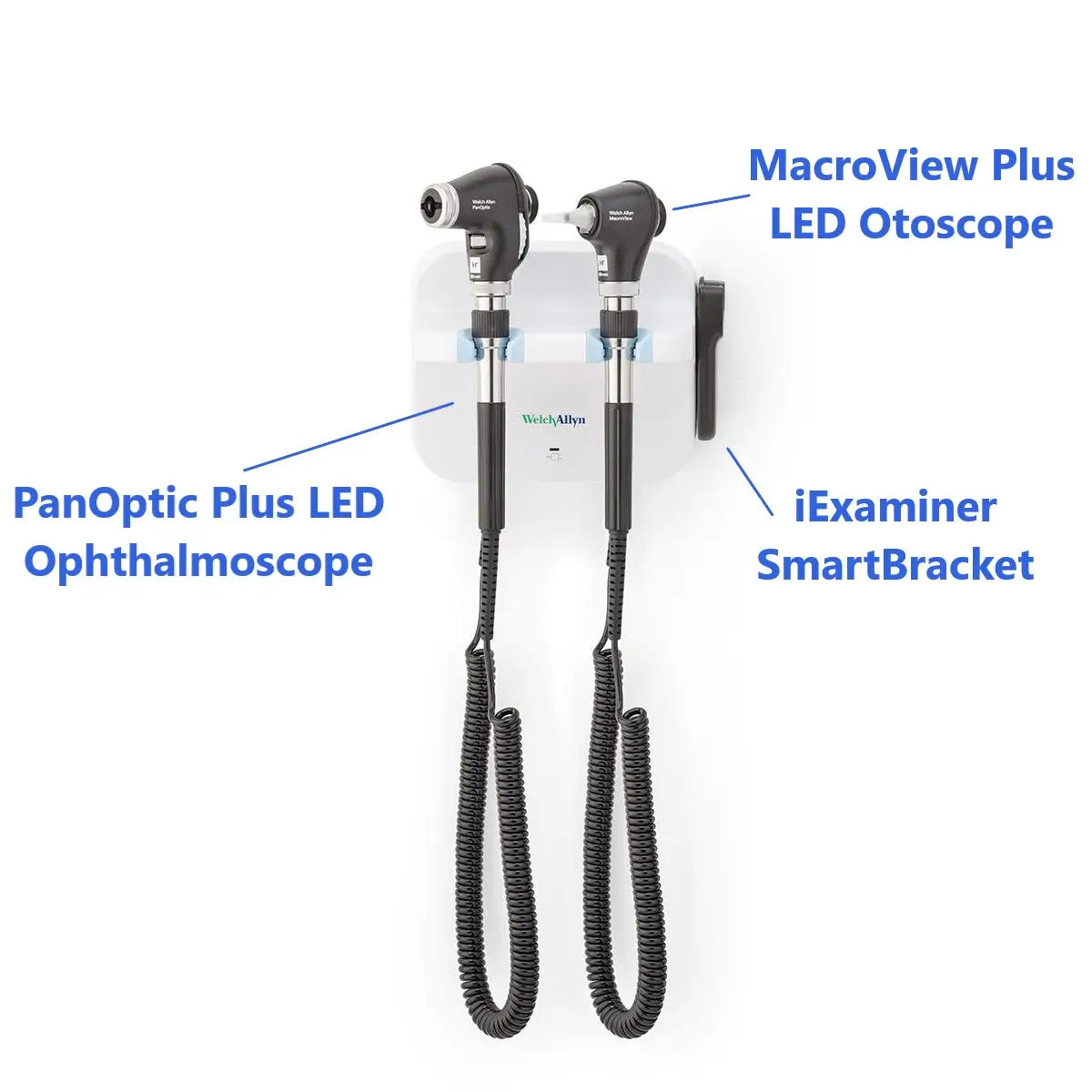

  • PanOptic Plus Ophthalmoscope and MacroView PlusOtoscope with iExaminer Bracket
  • Welch Allyn Specula Ear Dispenser
  • Braun PRO 6000 Ear Thermometer
  • Connex Integrated Wall System Integrated SureTemp Plus Oral Thermometer

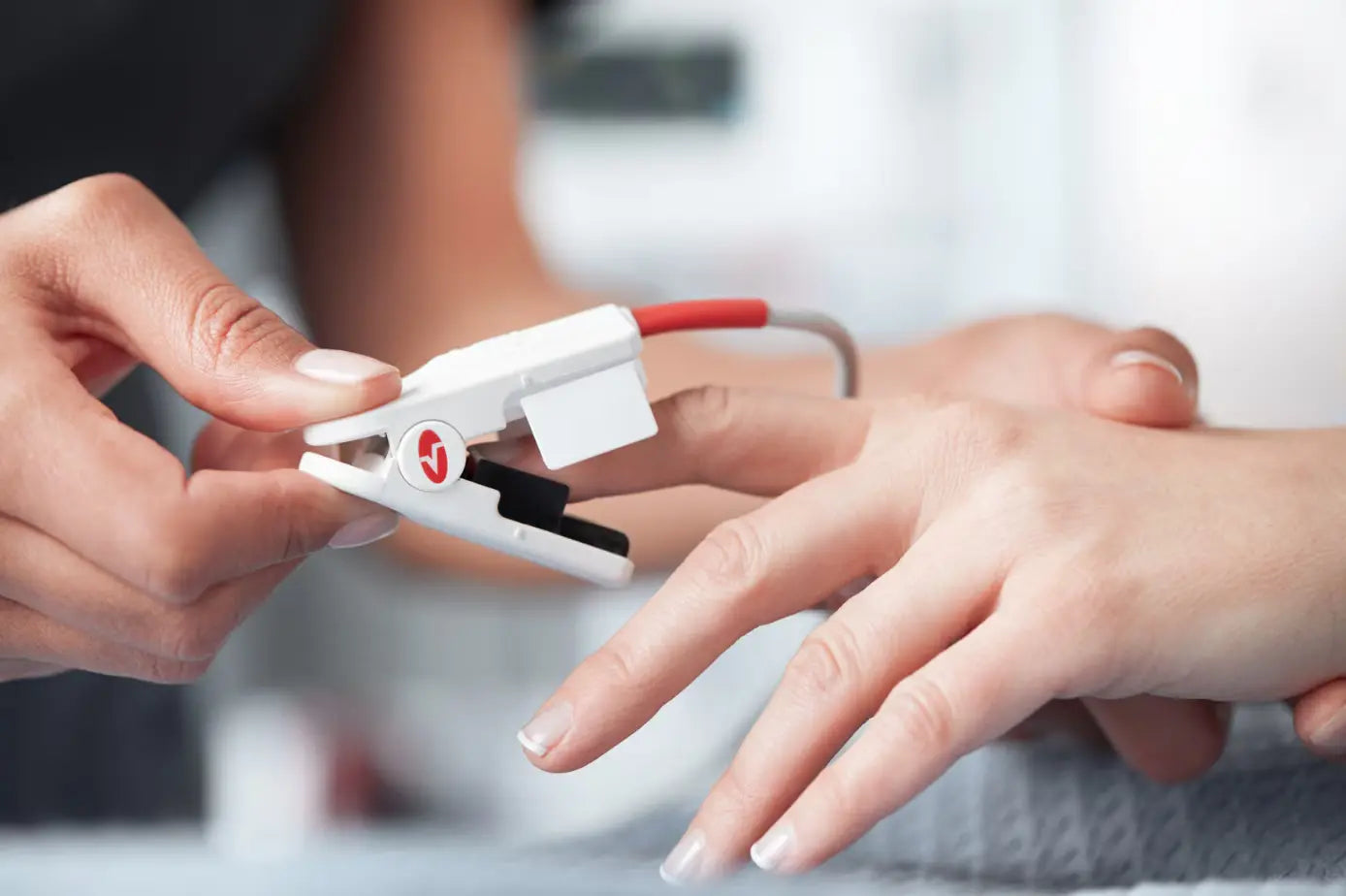

  • Pulse Oximeter SpO2 Masimo
1 9

Welch Allyn

Connex Integrated Wall System

Connex Integrated Wall System

$7,360.00
$7,360.00
Sale Sold out

MPN: 84MTVE2-US
Otoscope & Ophthalmoscope Type
Thermometer
Pulse Oximeter

⚠️ This item can only be purchased by licensed practitioners, medical students, or any other person(s) or entity licensed by the State.

60 Day Returns

Save valuable time and space with this integrated diagnostic wall system. One convenient, comprehensive physical assessment solution for capturing vital signs, plus otoscope and ophthalmoscope.

Features

  • Large 8.9" color LCD touchscreen is easy-to-read and interact with
  • Choose between noninvasive Masimo or Nellcor SpO2 pulse oximeters
  • Measure blood pressure in just 15 seconds with SureBP technology with a mode for adult, pediatric, and neonatal
  • Connect to Detecto, Health o meter and SECA weight scales
  • Connect to your EMR via WiFi and Ethernet
  • Connect barcode scanner for an efficient workflow (Optional Accessory)
  • Scale up with ECG monitoring to help identify lethal arrhythmia events and track cardiac activity using 3- or 5- lead ECG monitoring (Optional Accessory)
  • Secure patient information with data encryption and additional security features approved by the U.S. Department of Defense (DoD)
  • Quickly and securely access a device with single sign-on (including Imprivata integration)
  • Help identify signs of patient deterioration with automated Early Warning Scores
  • Customize your workflow to document patient observations and vitals modifiers

What's in the box

View full details

Otoscopes

The MacroView Basic Otoscope offers a 3x larger viewing area for ear exams when compared to views through a standard or pocket otoscope. The LED illumination lasts longer than standard bulbs reducing the need for lamp replacement. Compatible with 3.5 V power sources.(Optional)

The MacroView Plus Otoscope allows for optical or digital viewing to easily capture and share ear images for consultation. Use the included iExaminer SmartBracket to mount a smartphone with the iExaminer Pro app available on Android and iOS. Compatible with 3.5 V power sources.(Optional)

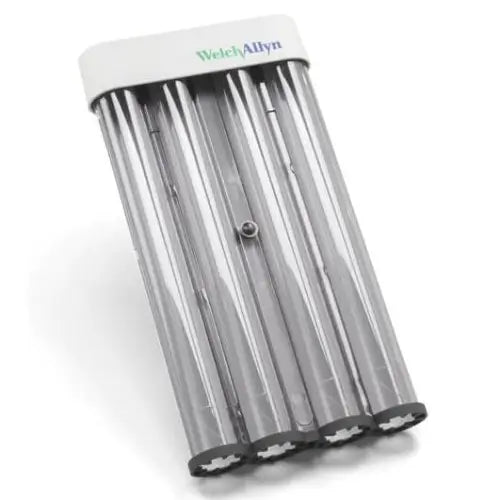

Ear Specula Dispenser

The LumiView Clear Single-Use Ear Specula dispenser for otoscopes gives an 8x brighter view when compared to a black ear speculum.(Included)

Thermometer

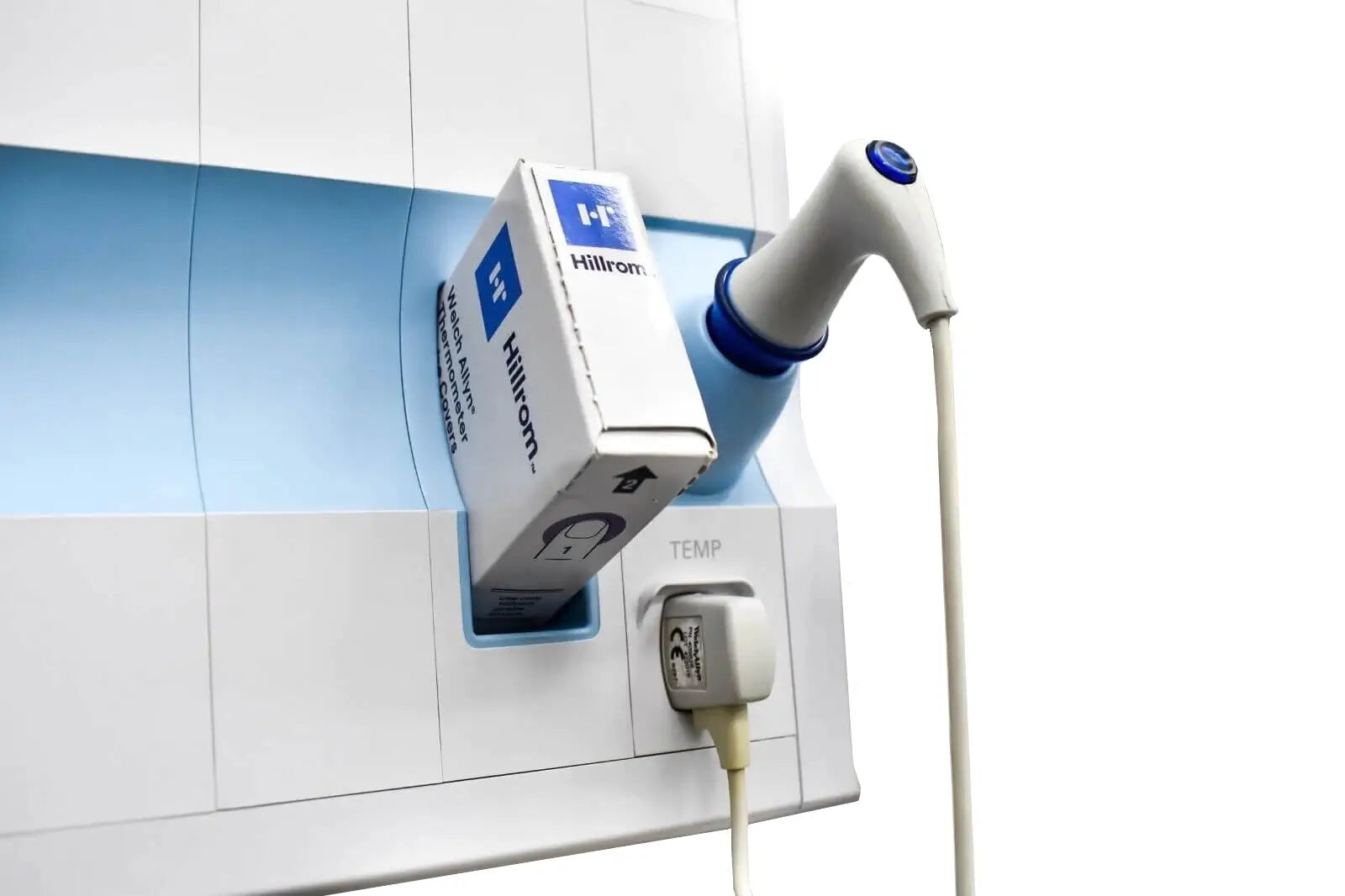

The SureTemp Plus Thermometer features technology that sets the standard for speed and accuracy. The large LCD displays Fahrenheit or Celsius, the shelf stores 25 probe covers, and the recall button shows the last temperature recorded. Captures oral readings in approximately 4-6 seconds and pediatric/adult axillary and rectal readings in 10-15 seconds.(Optional)

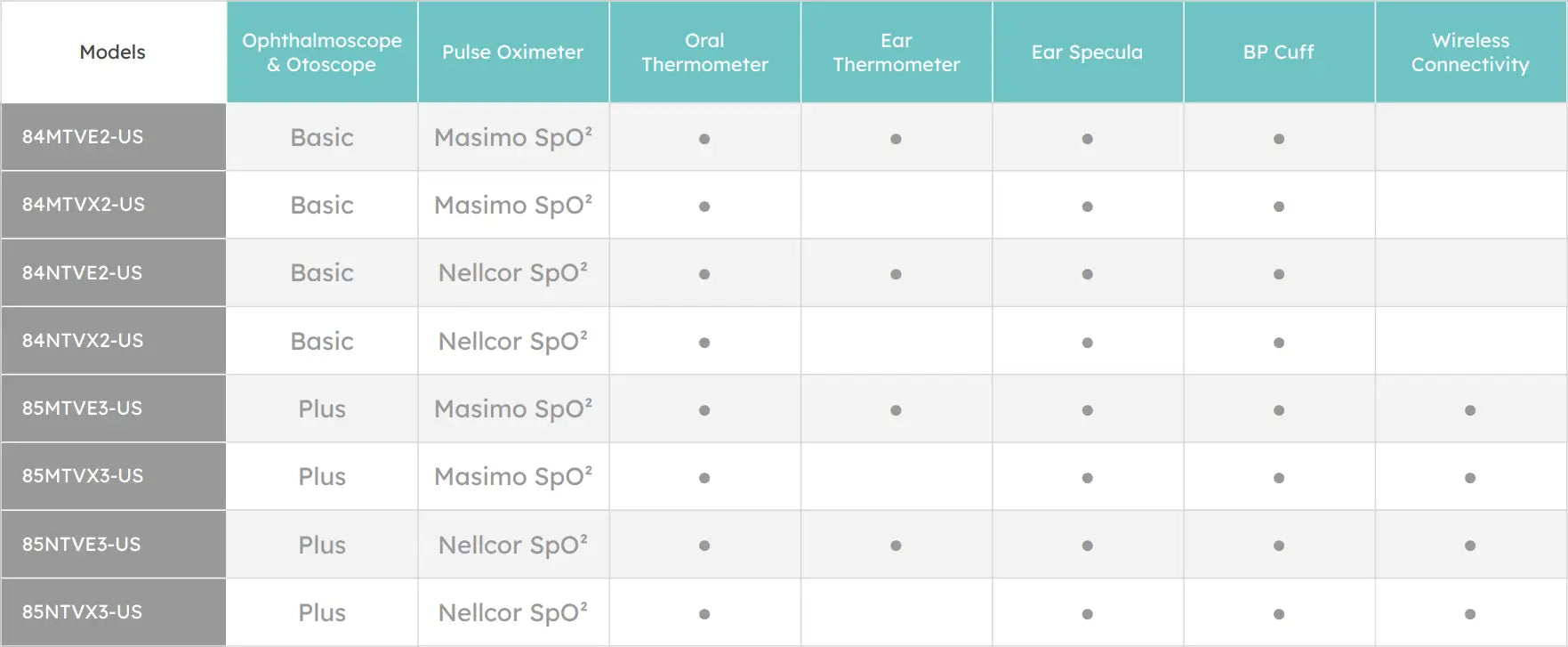

Models: 84MTVE2-US, 84MTVX2-US, 84NTVE2-US, 84NTVX2-US, 85MTVE3-US, 85MTVX3-US, 85NTVE3-US, 85NTVX3-US

Noninvasive Blood Pressure (NIBP)

Cuff Inflation Target Adult: 160 mmHg; Pediatric: 140 mmHg; Neonate: 90 mmHg
Systolic Range Adult/Pediatric: 30 - 260 mmHg; Neonate: 20 - 120 mmHg
Diastolic Range Adult/Pediatric: 20 - 220 mmHg; Neonate: 10 - 110 mmHg
MAP Range Adult/Pediatric: 23 - 230 mmHg; Neonate: 13 - 110 mmHg
Blood Pressure Accuracy Meets the ANSI/AAMI SP10:2002 and ISO/ANSI/AAMI 81060-2:2013 standards for noninvasive blood pressure accuracy (±5 mmHg mean error, 8 mmHg SD)
BP Determination Time Less than 20 seconds typical, 150 seconds max
Overpressure Cutoff Adult/Pediatric: 300 mmHg ± 15 mmHg; Neonate: 150 mmHg maximum
Pulse Rate Range Adult/Pediatric: 30 - 200 bpm; Neonate: 35 - 220 bpm
Pulse Rate Accuracy ± 5.0% (3 bpm)

Temperature

Measurement Range SureTemp Plus: 80 - 110°F (26.7 - 43.3°C)

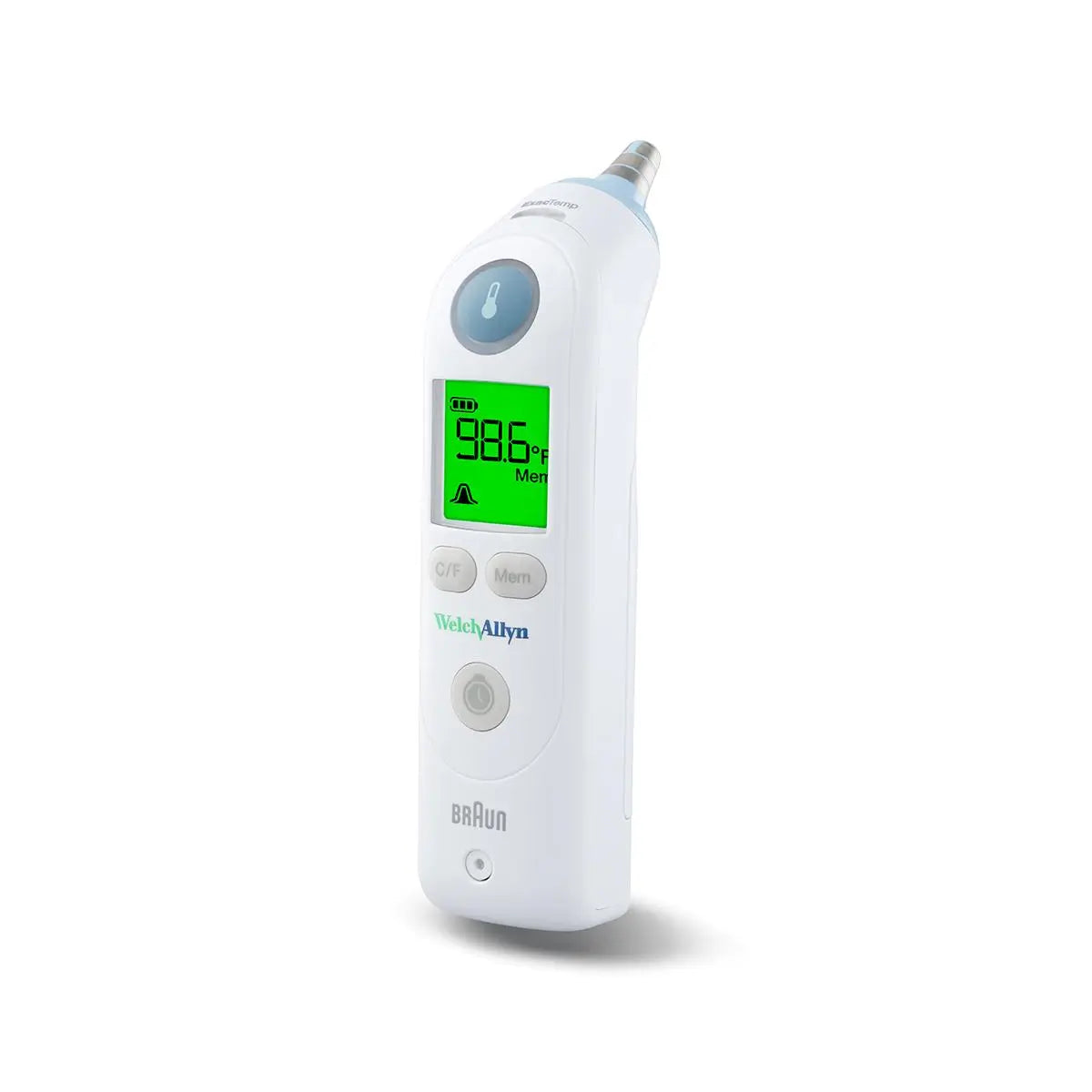

Braun: 68 - 108°F (20 - 42.2°C)
Calibration Accuracy SureTemp Plus: ±0.2°F (±0.1°C)
Braun: ±0.4°F (for temps up to 107.6°F), ±0.5°F (for temps higher than 107.6°F)

SpO2

Pulse Rate Range Masimo: 25 - 240 bpm
Nellcor: 25 - 240 bpm
SpO2 Accuracy Masimo: ± 3 digits
Nellcor: ± 3 digits
Pulse Rate Accuracy Masimo: ± 3 digits (no motion)
Nellcor: ± 3 digits

Wireless Radio

Wireless Network Interface IEEE 802.11 a/b/g/n
Frequency 2.4 GHz - 2.483 GHz (2.4 GHz bands) 5.15 GHz to 5.35 GHz, 5.725 GHz to 5.825 GHz (5 GHz bands)
Authentication/Encryption Wireless Equivalent Privacy (WEP, RC4 Algorithm); Wi-Fi Protected Access (WPA); IEEE 802.11i (WPA2); TKIP, RC4 Algorithm; AES, Rijndael Algorithm; Encryption Key Provisioning; Static (40-bit and 128-bit lengths); PSK; Dynamic; EAP-FAST; EAP-TLS; EAP-TTLS; PEAP-GTC 1; PEAPMSCHAPv2; PEAP-TLS
FIPS 140-2 Yes

Select Specifications

Physical Height: 10.56 in. (268.26 mm)
Width: 37.80 in. (960 mm) with Braun thermometer 39.92 in. (1014 mm)
Weight (including battery): 14.1 lb. (6.4 kg)
Power cord length: 8 ft.
Graphical Display Dimensions Display area: 8 in. (H) x 4 in. (V) (20.3 cm [H] x 10.2 cm [V])
Resolution: 1024 x 600 pixels
Battery Lithium-ion
Environmental Operating temperature: 50°F to 104°F (10°C to 40°C)
Operating humidity: 15 to 95% noncondensing
Storage temperature: -4°F to 122°F (-20°C to 50°C)
Storage humidity: 15% to 95% noncondensing
Operating altitude: -557 to 10,000 ft. (-170 m to 3,048 m)
Handle FIPS approved encryption algorithms of transmitted data; Server authentication of the device; Digitally signed software images and configuration files
Electrical Rating 100-240 V AC, 50-60 Hz, 1.50-.08 A

Brochures

Show Hide

Installation Guides

Show Hide

Specification Sheets

Show Hide

User Manuals

Show Hide

1-Year Limited Warranty (See user manual for more information)
