Welch Allyn

Connex 360 Vital Signs Monitor

Connex 360 Vital Signs Monitor

$6,375.00
$6,375.00
Sale Sold out

MPN: 94CXT-B
Pulse Oximeter

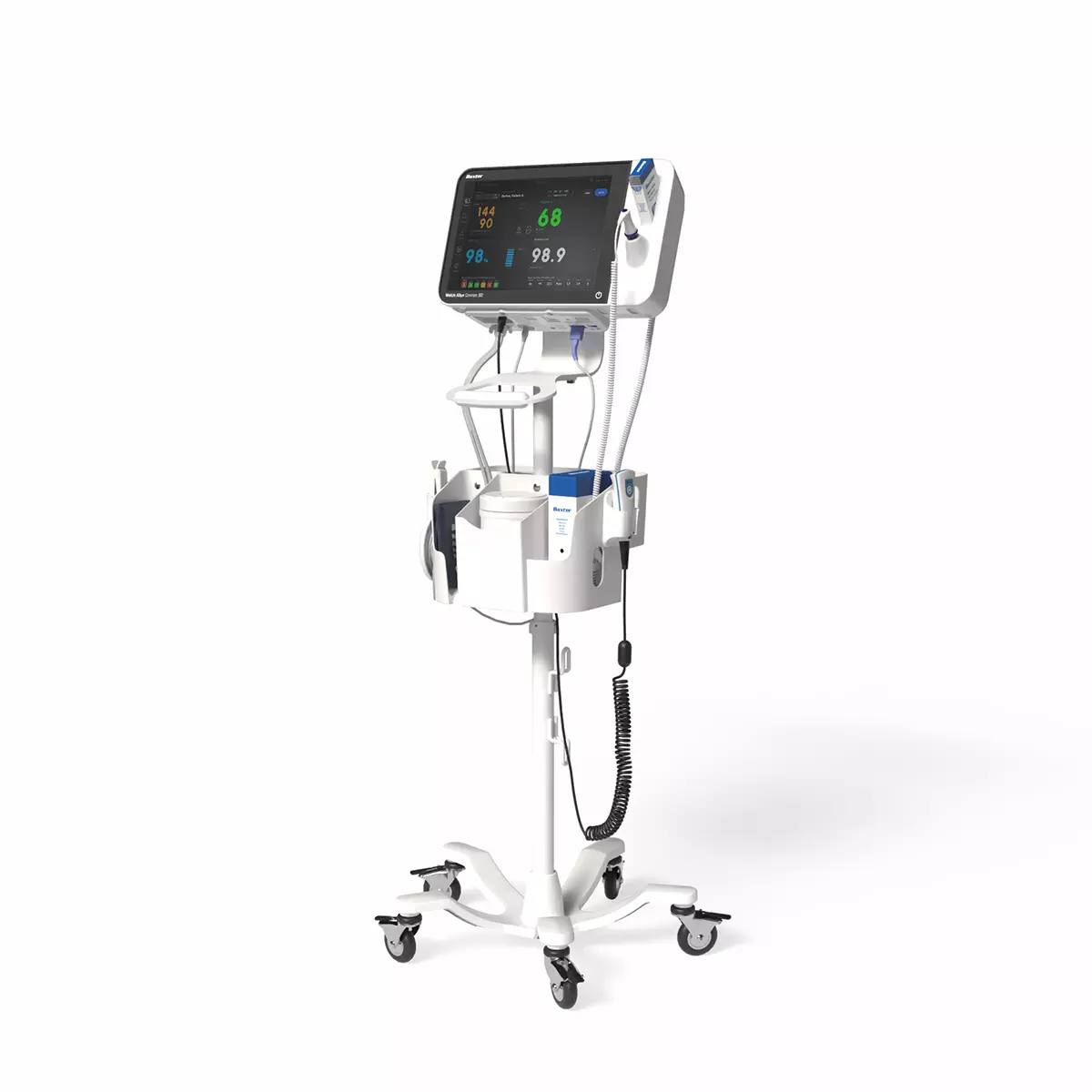

Device Mount
EMR Connectivity

⚠️ This item can only be purchased by licensed practitioners, medical students, or any other person(s) or entity licensed by the State.

60 Day Returns

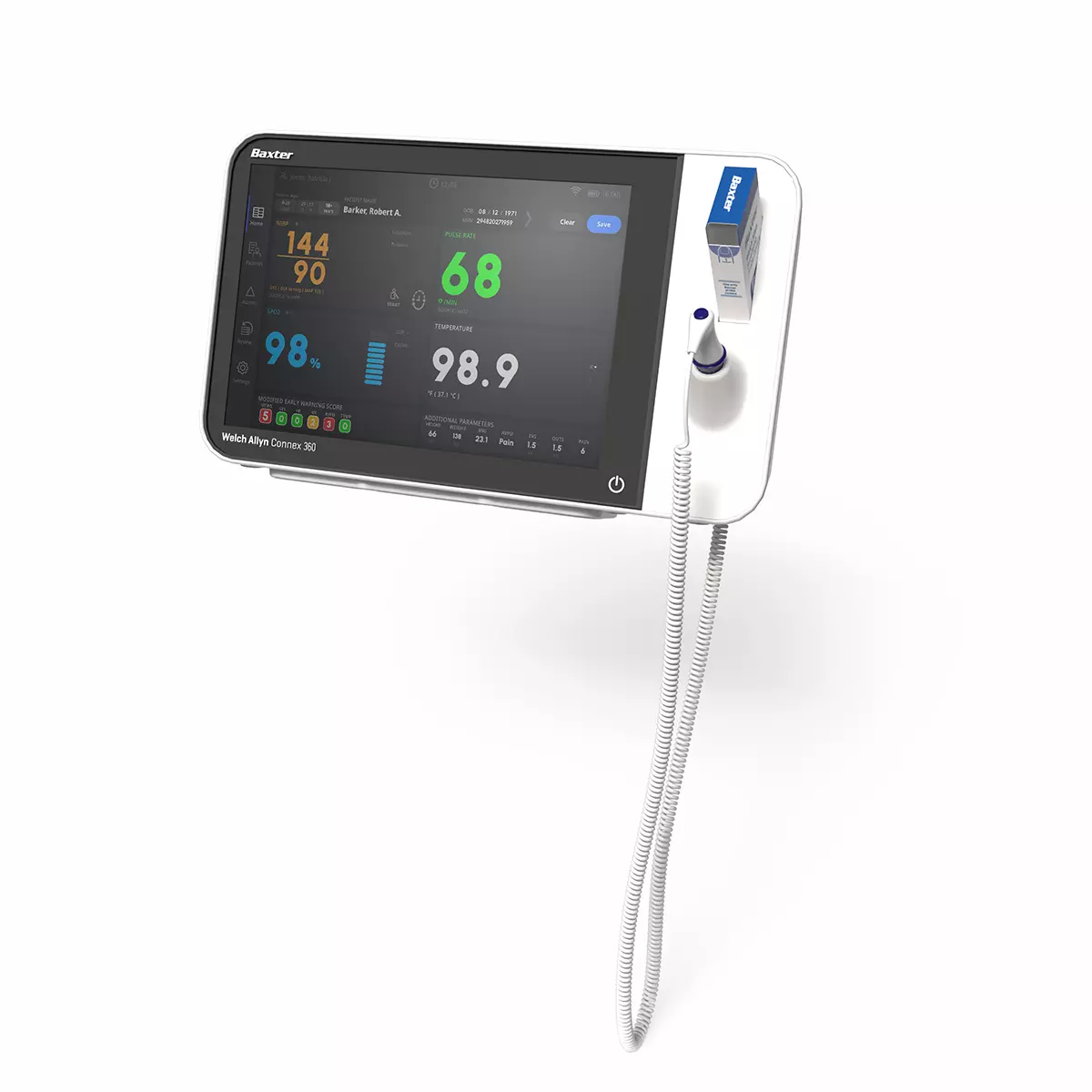

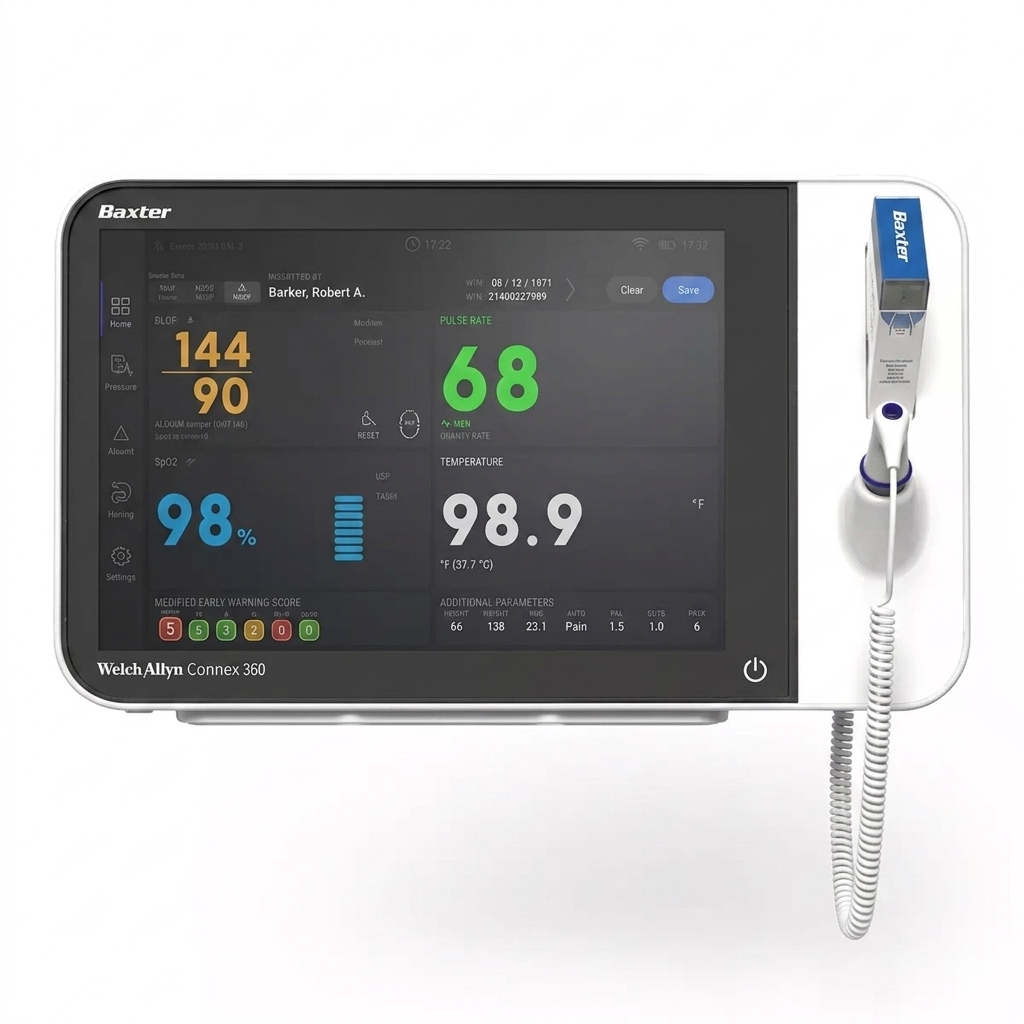

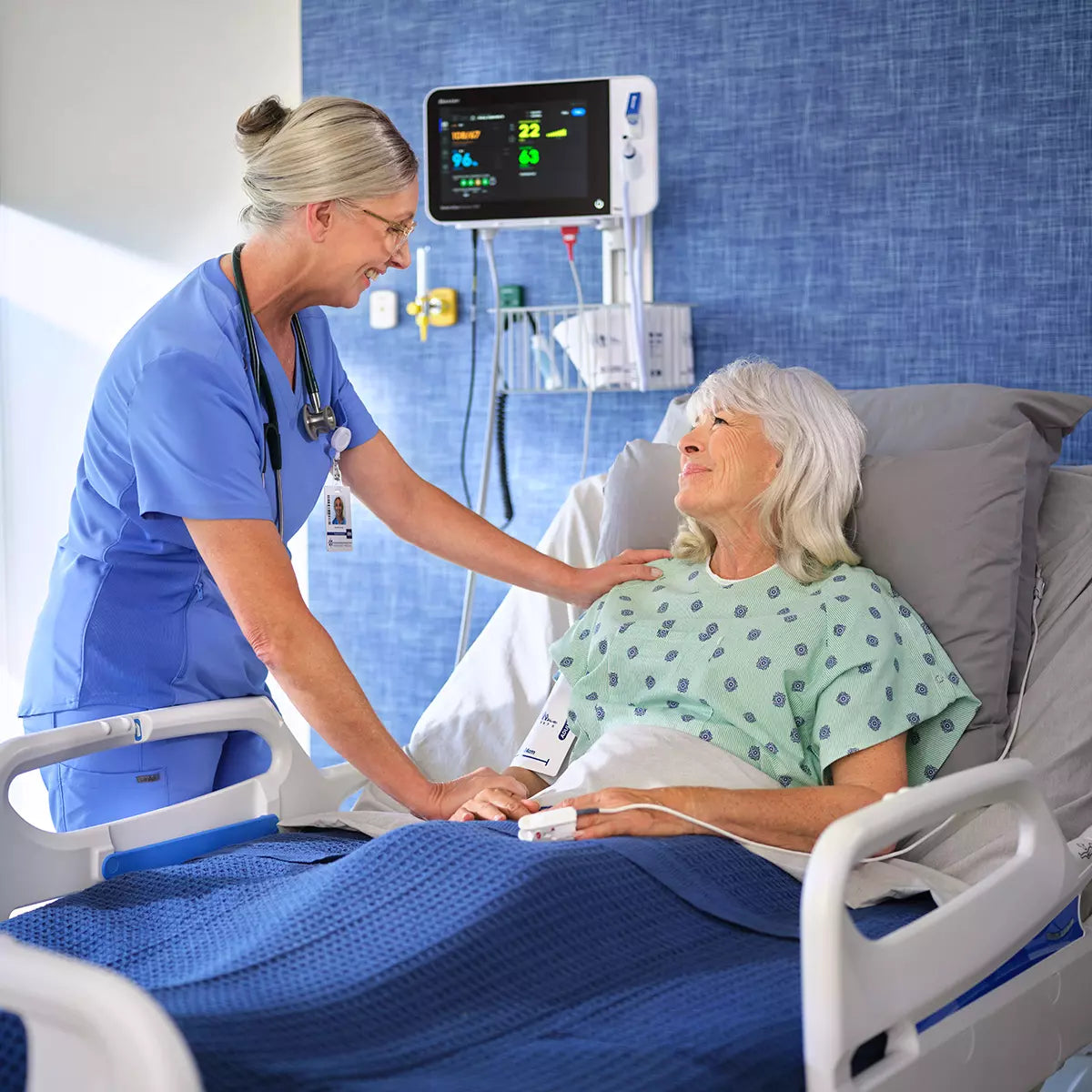

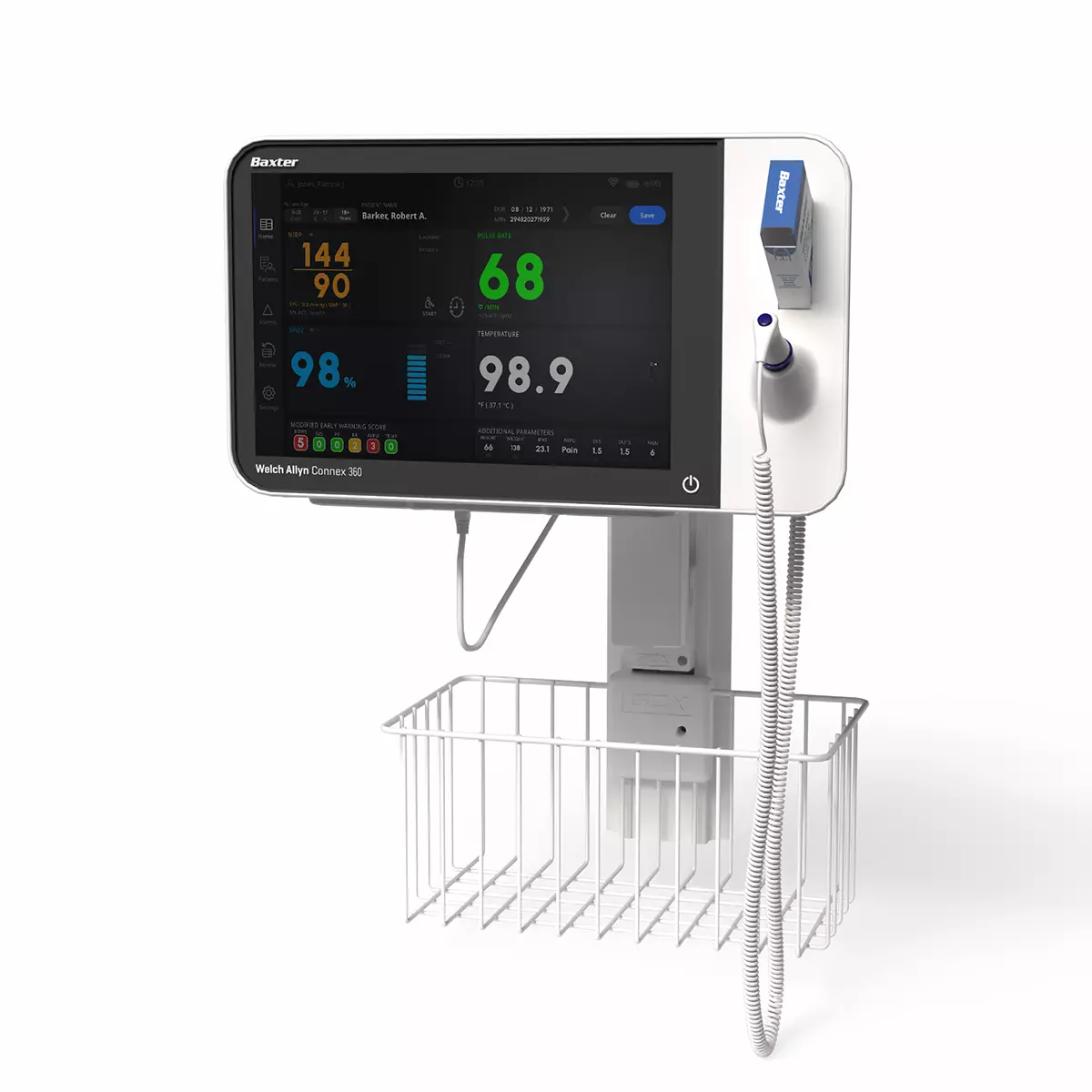

The Welch Allyn Connex 360 is a connected vital signs monitor designed for fast, secure bedside capture of NIBP, SpO2, temperature, pulse rate, and optional RRp, with customizable early warning scores and EMR-ready workflows.

Features

  • Captures a full set of vitals in less than one minute and can automatically transfer results to the EMR, helping reduce manual charting and transcription errors.
  • Supports spot check monitoring, interval monitoring, and BP averaging programs for flexible low- to mid-acuity workflows.

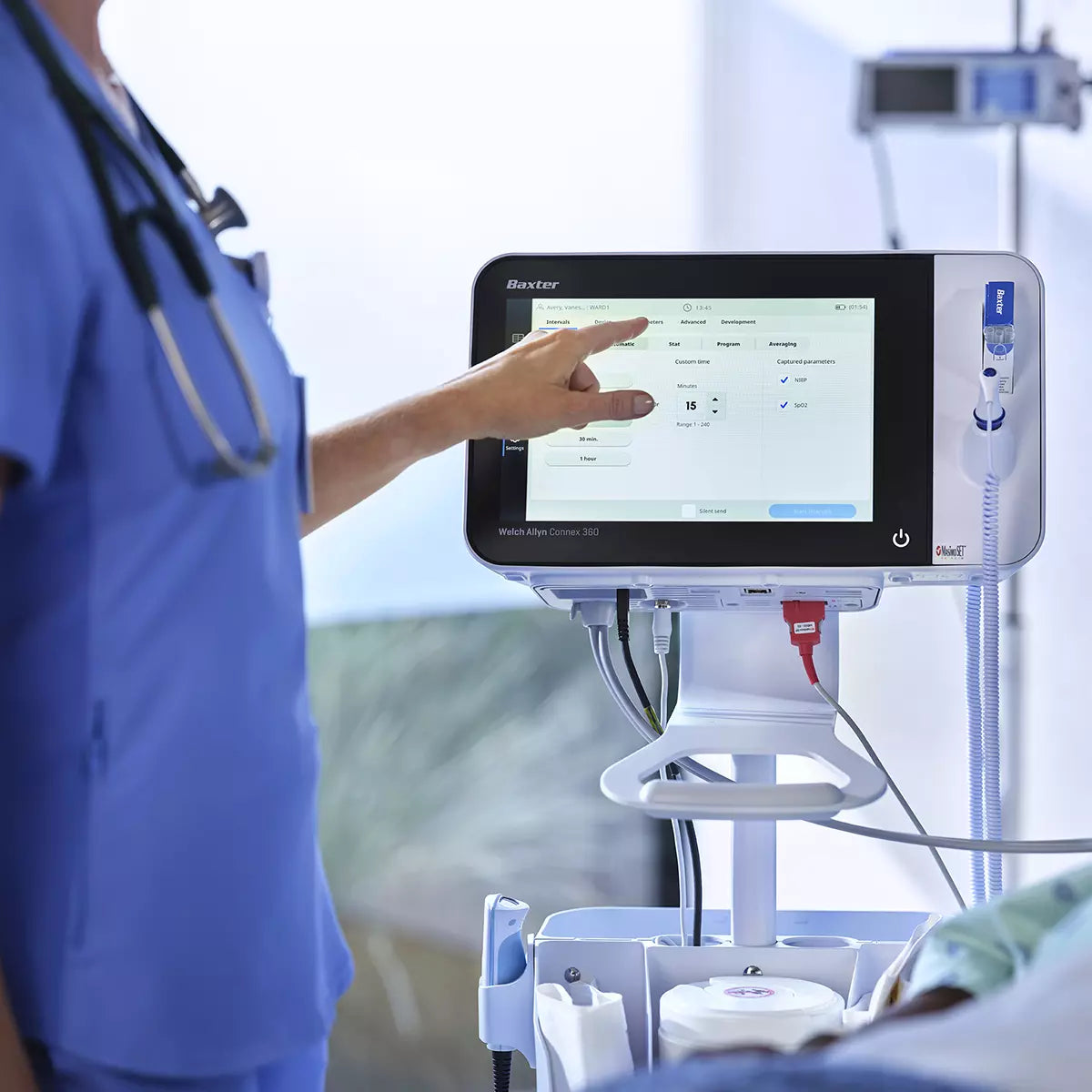

  • Large 12.1-inch color touchscreen with profile-free navigation for quick clinician adoption and efficient bedside use.
  • Built for adult, pediatric, and neonate patients with an upgradeable, expandable platform for changing clinical needs.
  • Supports customizable early warning score protocols such as MEWS, PEWS, and NEWS2 to help identify patient deterioration sooner.

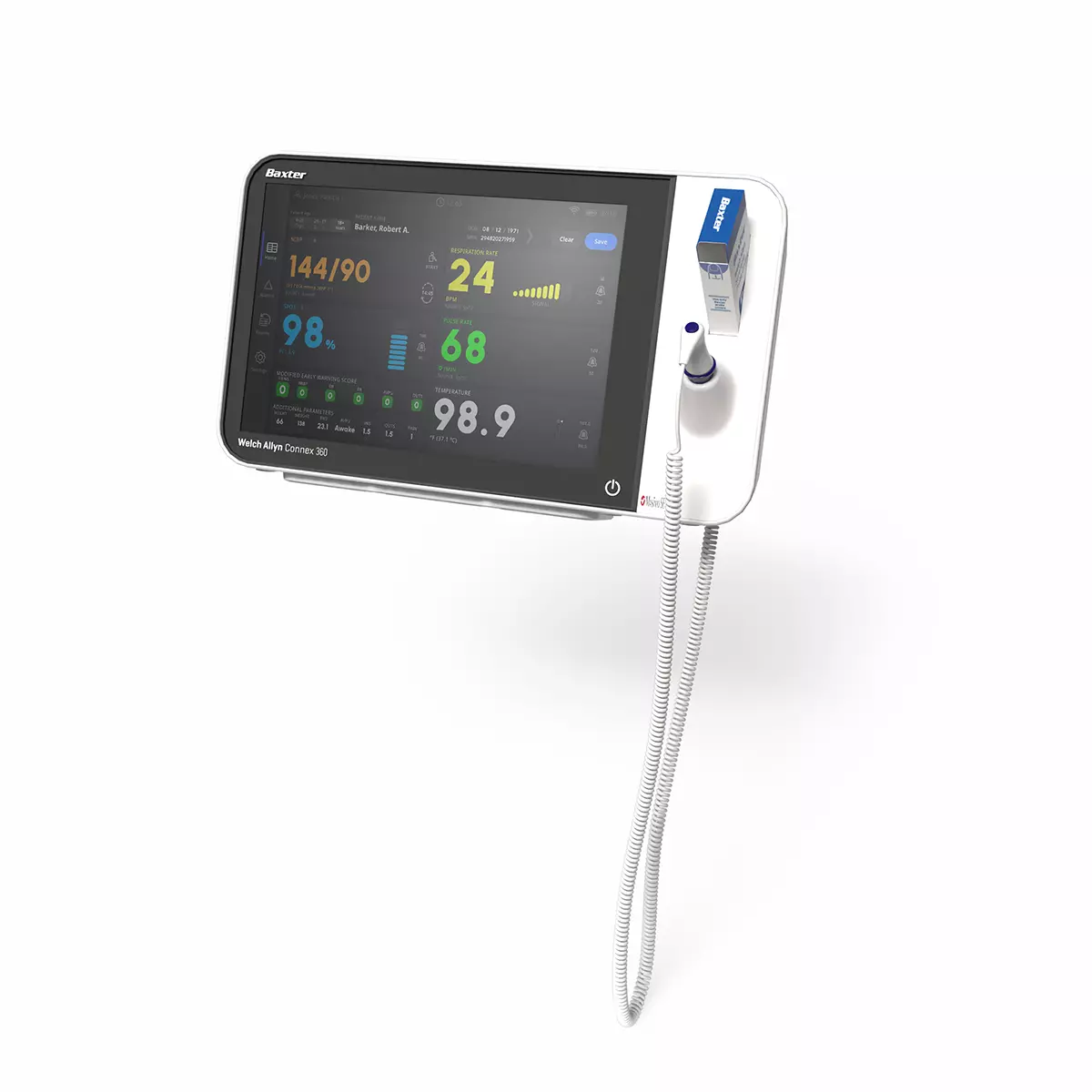

  • Offers a choice of Masimo or Nellcor SpO2 technology, with optional Masimo RRp respiration monitoring for patients older than 2 years.
  • Allows documentation of up to 20 additional patient data fields for more complete bedside workflows.
  • Designed with a strong security posture, including Imprivata-ready authentication, TPM, FIPS-aligned data protection, TLS 1.3, and WPA3 support.
View full details
Patient Populations Adult, pediatric, and neonate
Monitoring Modes Spot check
Timed intervals monitoring
Blood pressure averaging
Customizable programming
Display 12.1" projected capacitive touchscreen
1280 x 800 resolution
Blood Pressure NIBP with systolic, diastolic, and MAP
Adult/Pediatric systolic range: 30 to 260 mmHg
Neonatal systolic range: 20 to 120 mmHg
Typical determination time: 15 seconds
Temperature SureTemp Plus predictive and direct modes
Measurement range: 80 to 110 F
SpO2 / Pulse Rate Masimo or Nellcor SpO2 options
SpO2 range: 1 to 100%
Pulse rate range: 20 to 250 bpm
Optional Respiration Monitoring Masimo RRp for adult and pediatric patients 2 years and older
Measurement range: 4 to 70 respirations per minute
Battery 9-cell lithium-ion battery
Normal-use runtime: 8.0 to 9.78 hours
Recharge to greater than 95% in 6 hours
Connectivity Wi-Fi 802.11 a/b/g/n/ac
Ethernet RJ-45
4 USB ports
1 USB-C port
1D / 2D barcode support
RFID support
HL7-compatible data output
Security FIPS-approved encryption algorithms
Secure boot
TPM
Internal firewall
TLS 1.3
WPA2 / WPA3 support
FIPS 140-2 listed
Dimensions Width: 15.96" (40.54 cm)
Height: 9.43" (23.95 cm)
Depth: 6.07" (15.42 cm)
Weight 12 lb / 5.44 kg with SureTemp configuration, including battery
Ingress Protection IP22

Brochures

Show Hide

Specification Sheets

Show Hide

User Manuals

Show Hide

2-Year Limited Warranty (See user manual for more information)
To look up your warranty or to register your product, please visit the manufacturer's website.

Warranty Lookup
